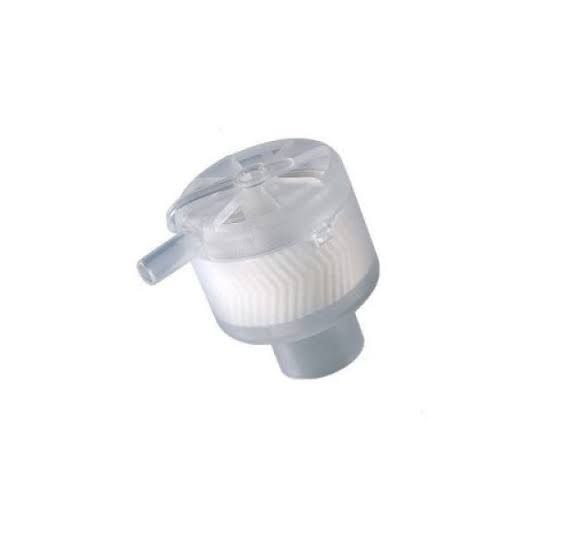

Covidien DAR HME for Tracheostomized Patients

• Excellent functionality even when sputum is present
• Allows heating and humidification of all inspired gases
• ISO standard 15 mm fitting
• Easy replacement, no assembly needed

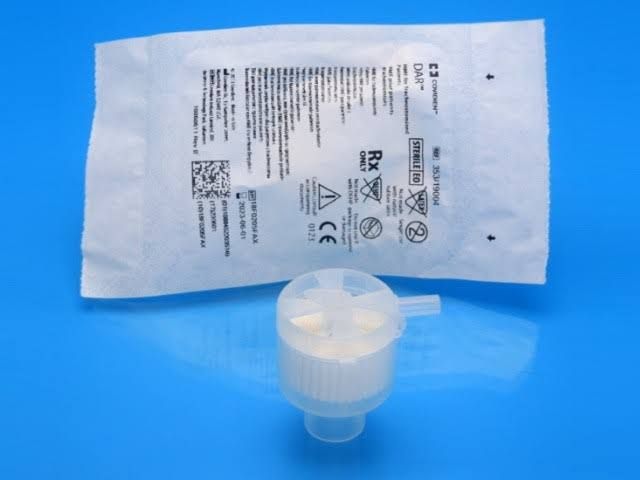

• Single-use, supplied clean in individual packaging .

Medtronic is proud to manufacture the best items for respiratory care. The DAR™ HME for Tracheostomized Patients is a single-use device with an oxygen port that’s positioned to allow heating and humidification of all types of all inspired gases. This device comes with a collection chamber that ensures high-end functionality and is not compromised when sputum is present. You can easily replace this HME without any additional assembly, and patients will enjoy high humidification efficiency. The central port present in this device allows for suctioning and sampling to be performed without removing the device, and replacement is made even easier by the ISO standard 15 mm fitting.

Usage Indications

These HME devices are supplied clean and individually packaged for your convenience. These devices are meant to be single-use HMEs for tracheostomy patients that can breathe spontaneously.

This product is intended to be replaced at least once every 24 hours.

HME Specifications

Size: Vt 300 – 1500 ml

Connection: ISO 22M/15F – 22F/15M

Moisture output: Vt 500 ml – 28.5 mg H2O/L after 2 hours

Temperature output: Vt 500 ml – 29.0°C after 2 hours

Resistance to flow (cm H2O):

At 30 L/min 0.7 cm H2O
At 60 L/min 1.8 cm H2O
At 90 L/min 3.0 cm H2O

Box of 25 HMEs for Tracheostomized Patients
