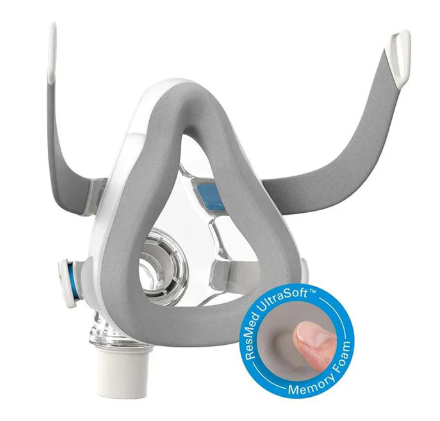

Resmed AirTouch F20 Full Face Mask

Our softest mask ever When it comes to effective sleep therapy, comfort is key. That’s why the AirTouch F20 features the ResMed UltraSoft™ memory foam cushion, a breakthrough in CPAP mask comfort technology. This innovative new cushion conforms to the unique contours of each face for a truly personalized fit. It is also designed to deliver a light, breathable seal across a wide range of therapy pressures, fitting 98% of patients.
Supple memory foam adapts to the curves and contours of each face, creating a soft, personalized fit designed to reduce facial markings and skin irritation.

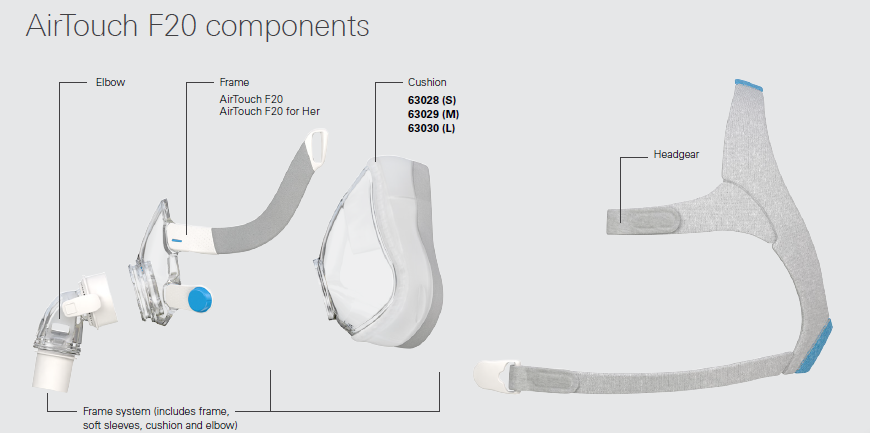

AirTouch F20 highlights:

1. Plush headgear specially designed for extra softness and stability.
2. Ultrasoft memory foam cushion is the softest cushion we’ve ever created, designed for exceptional comfort.
3. Soft and flexible frame sits underneath the eyes and adapts the different facial types, while integrated padding adds softness. Compatible with Infinity Seal cushions.
4. Diffused venting evenly disperses air and dampens air flow.
5. Quick-release elbow masks it simple to disconnect from tubing when getting up during the night.
6. Magnetic clips quickly and easily guide the headgear to the frame.

Fitting guide for AirTouch F20

Refer to the user guide for further instructions and complete labeling information
including indications, contraindications, warnings and precautions.

• Start by ensuring the magnets on the lower straps are unclipped.
• If they are clipped, detach them by twisting and pulling them away from the frame.
• Adjust the fastening tabs on the upper straps until the mask feels even and stable.
• Reattach the fastening tabs.
• Pull the headgear over the patient’s head, making sure the logo is facing outwards.
• Position the lower straps so they both sit below the patient’s ears.
• Bring each of the magnets up to meet their corresponding clips on the frame.
• Repeat step 4 with the lower straps.
• Reattach the fastening tabs.
• Connect the device’s air tube to the elbow, then click the elbow into the front of the mask.
• Start the device.

Additional options
For patients with longer hair, we recommend feeding their hair through the back of the headgear. If tied in a ponytail, it should sit high enough to fit comfortably through the back of the headgear.
