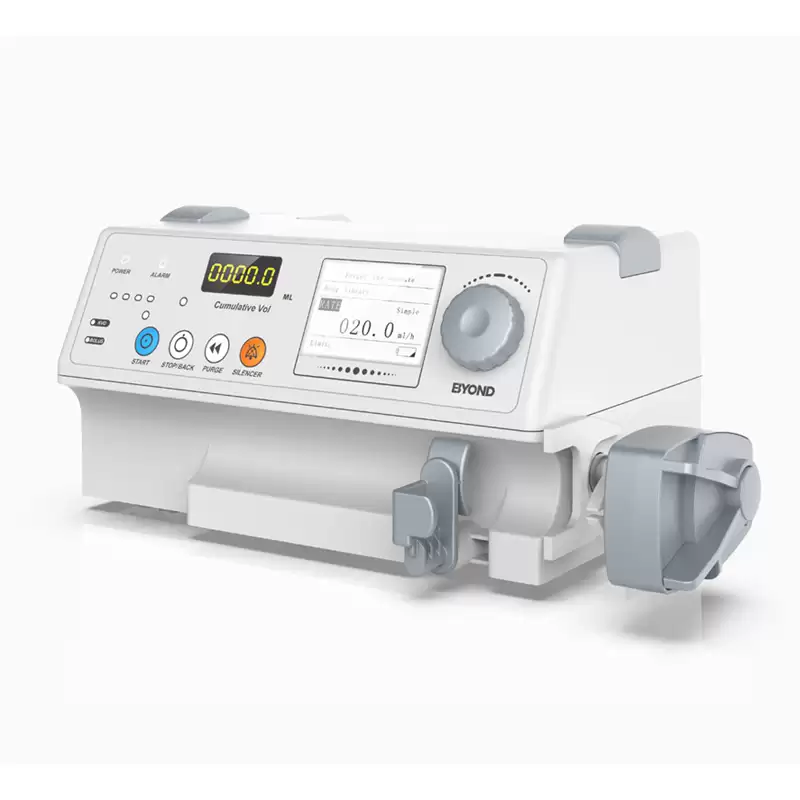

Features of Single Channel Syringe Pump
1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
3. Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
6. Three levels of occlusion: high, medium and low;
7. Purge and Bolus function;
8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h(0.1ml/h step);
9. Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;
10. Power Source: AC100—240V, 50/60Hz; Internal Battery, DC12V car charge;
11. One-key operation makes setup easy and simple;
12. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
13. Automatically record the settings of last injection;
14. OEM is available.
Specification of Single Channel Syringe Pump
| Unique Human Voice Alarm system |
The device triggered the human voice prompt and stop injection automatically when there is any malfunction, making the infusion process safer and more reliable. |
| Rate: |
50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step)
1,000ml/h ~ 1,500ml/h (1ml/h step)
30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step)
20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step)
10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step) |
| Flow Rate Accuracy |
Within ±3% (after correct calibration) |
| Mechanical precision |
Within ±2% |
| Bolus Rate |
50/60ml Syringe: 1,200ml/h
30 ml Syringe: 720ml/h
20 ml Syringe: 480ml/h
10 ml Syringe: 240ml/h |
| Purge Rate |
50/60ml Syringe: 1,500ml/h
30ml Syringe: 900ml/h
20ml Syringe: 600ml/h
10ml Syringe: 300ml/h |
| Volume Limit |
0.1ml ~ 9999.9ml (0.1ml step) |
Total Injection
Volume |
0.1ml ~ 9999.9ml (0.1ml step) |
| Occlusion of Single Channel Syringe Pump |
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa)
Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa)
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) |
| Alarms |
Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc. |
| Power Source |
AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup |
| KVO rate |
1ml/h |
| Fuse |
F1AL/250/60V, 2pcs inside |
| Power Consumption |
30VA |
| IP Classification |
IPX4 |
| Equipment Classification |
Class II, internal power supply, Type CF |
| Operating Condition |
Ambient temperature: +5℃~ +40℃ |
| Relative humidity |
20 ~ 90% |
| Transport & Storage Condition |
Ambient temperature:-30℃~ +55℃ |
| Relative humidity |
≤95% |
| Dimension |
280mm (L) ×210mm(W) ×130mm(H) |
| Weight |
2.2kg (net weight) |
