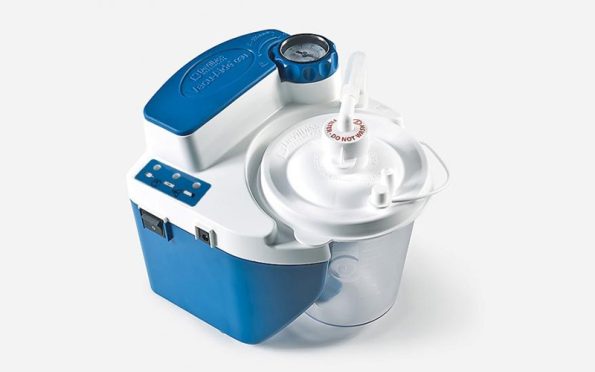

VacuAide Portable Suction Unit
Features
Specifications
Description
Features
- High performance capabilities
- Compete with 100-240V Power supply & 12V DC adapter
- Upto 60 minutes internal battery runtime
- Multi voltage switch mode power supply
- Built to comply with the ISO 10079-1 std
Specifications
- Dimensions of QSU Suction Unit
- (H x W x D): 21.1 x 20.3 x 21.6 cm
- Weight of QSU Suction Unit 3Kg
- Operating sound level: 55dBA
- Vacuum range : 50 – 550 mmHg
- Air Flow : 27 l/min
Description
The VacuAide suction unit is a small and lightweight portable aspirator with the critical safety and performance advantages. The VacuAide portable suction unit is the smallest and the strongest suction unit of its kind, while featuring a convenient carrying bag that provides the discrete suction on the go. The VacuAide portable suction unit is an ideal for home or hospital use and meets the stringent ISO 10079-1 standards for the emergency transport suction. It can also be used from its internal battery or directly from the power supply.
- High performance capabilities with a vacuum range of 80– 550 mmHg and a flow range of 0 – 27 l /min
- Meets the stringent ISO 10079-1 standard
- Comes complete with a rechargeable battery, 12 V DC in car charger, mains lead and carry case
- Switch mode power supply allows operation on any AC voltage 100V– 240V
- Two bottle options available – 800ml disposable collection bottle or 1200ml re-usable bottle
- Battery fully charges in 10 –17 hours and runs for 60 minutes
- Automatically recharges when connected to the power supply
- Dimensions (H x W x D) : 22.9 x 17.8 x 20.3 cm
- Weight: 2.9 kg
- Air flow: 27 l/min
- Vacuum Range: 80– 550 mmHg
- 2 year warranty on the suction unit, 90 day warranty on the battery
- 12 V DC capability for vehicle charging
- Easy to replace bacterial filter
- Automatic float shut-off to prevent overflow into the unit
Specification of VacuAide portable suction unit:
- Dimensions: 7.25″H x 7.25″W x 6.75″D
- Suction Unit Weight: 3.37 lbs.
- Shipping Dimensions: 9.25″H x 9.5″W x 12″D
- Shipping Weight: 7.75 lbs.
- Sound Level: 65 dbA
- Vacuum Range: 50-550 mmHg*
- Operating Flow Rate: 0-27 lpm*
- Electrical Requirements: 100-240 VAC, 50/60 Hz, 0.75 A
- Power Consumption: 33 W maximum
- Approvals: IEC 601-1, CAN/CSA-C22.2 No. 601.1-M90, CE EN 60601-1-2, UL2601-1, ISO10079-1:1999
- Operating Temperature Range: 32°F-104°F
- Operating Relative Humidity: 0-95%
- Operating Atmospheric Pressure: 10.2-15.4 Psi (70-106 kPA)
- Operating Mode: Intermittent: 30 min. ON, 30 min. OFF
- Collection Jar Capacity: 725 ml
- Battery Use: Up to 1 hour when fully charged
Warranty
- Suction Unit: 2 years limited
- Internal Battery: 6 months
